Generally the model A use LaserCAD/AUTOCAD/RUIDA and RDworks engraving software. It makes DSP technology and USB flash disk read and edit file. Besides A models feature, it has WIFI and mobile app function.
Features
1. It adopts high quality CO2 tubes, eg RECI,EFR,Yongli brand and USA focus lens and reflective mirrors. Besides this, It also has module guide rail which make sure the machine has high engraving accuracy and longtime service time.
2. Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.
3. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file.
4.The updated software supports AutoCAD, COREDRAW,CAM and other processing graphics software. Original images can be directly read by USB interface. Also it support hot-plug and hot-unplug and it uses very less time to finish data reading and it doesn’t occupy computer resources.
5. It supports WIFI
6.Owing to advanced technology, it has excellent engraving and scanning accuracy. It can make 1mm English character and clear halftone image.
7.Red light location, auto lifting platform or rotary fixture or negative pressure adsorption is optional.
8. It has power off continue engraving functions.
Specification:
1.Laser power:60W,80W,100W or 130W
2..Max engraving area:1300x900mm
3.Engraving speed:0-64000mm/min
4.Cutting thickness:0-25mm(depends on material)
5.Min character:1x1mm English
6.Resolution:4500DPI
7.Working voltage:110/220VAC 50Hz
8.Repeatability:0.01mm
9.Graphic format: BMP,PLT, JPEG,GIF,TIFF,PCS,TGA,CDR,DWG and DXF
10.Machine size: 1900x1600x1080mm
11.Machine weight:300Kg
Applicable materials
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
|
|

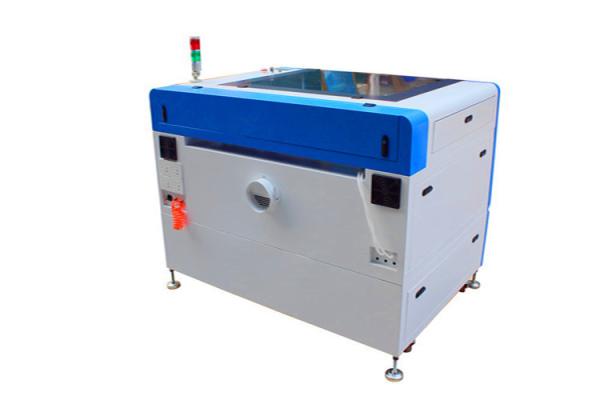

Alloy Aluminum Stainless Steel 1300*900mm 1000W2000W Fiber Laser Cutting Machine Images
|
